Short Shaft only available-LIMITED STOCK.

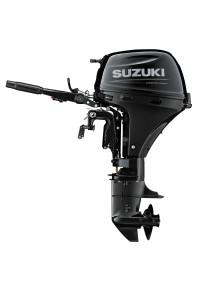

MODELDF 15A
RECOMMENDED TRANSOM HEIGHT mmS: 381, SHORT SHAFT ONLY AVAILABLE AT THIS PRICE.
STARTING SYSTEM Electric / Manual
WEIGHT kg *5S: 48, L: 49 / S: 44, L: 45
ENGINE TYPE OHC
FUEL DELIVERY SYSTEM Battery-Less Multi-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS 2
PISTON DISPLACEMENT cm3327
BORE STROKE mm60.4x57
MAXIMUM OUTPUT kW11.0
FULL THROTTLE OPERATING RANGE rpm5,000-6,000
STEERING Tiller
OIL PAN CAPACITY Lit. (U.S. qt)1.0
FUEL TANK CAPACITY  Lit.12
IGNITION SYSTEM Digital CDI
ALTERNATOR1 2V 12A / 12V 6A
ENGINE MOUNTING Shear Mount
TRIM METHOD  Manual Trim and Tilt
GEAR RATIO  2.08:1
GEAR SHIFT  F-N-R
EXHAUST Through Prop Hub Exhaust
PROPELLER SELECTION (Pitch) *5 All propellers are the 3-blade type7-12
Dry weight: not including propeller and engine oil
Please inquire at your local dealer for details of the propeller
The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
